10G SFP+

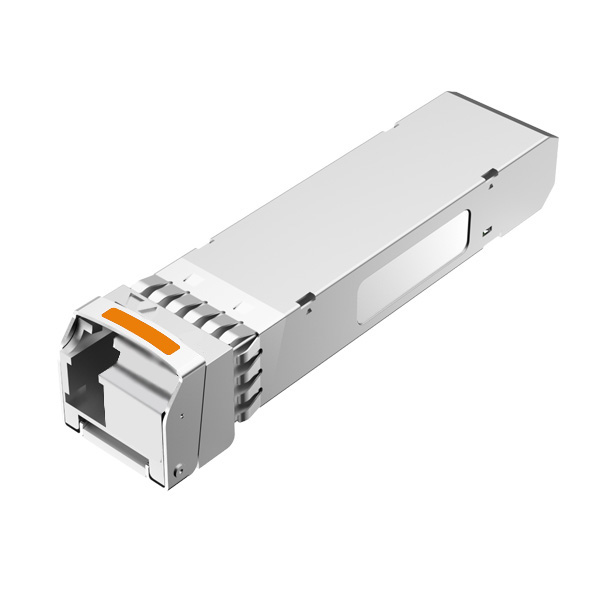

10G BIDI 20km SFP+ 1330nm Tx/1270nm Rx Single LC DOM
- Supports up to 10.7Gbps bit rates
- 1330nm DFB laser and PIN photodiode, Up to 20km for SMF transmission
- Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
- Single +3.3V power supply
- Product description: 10G BIDI 20km SFP+ 1330nm Tx/1270nm Rx Single LC DOM
SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
