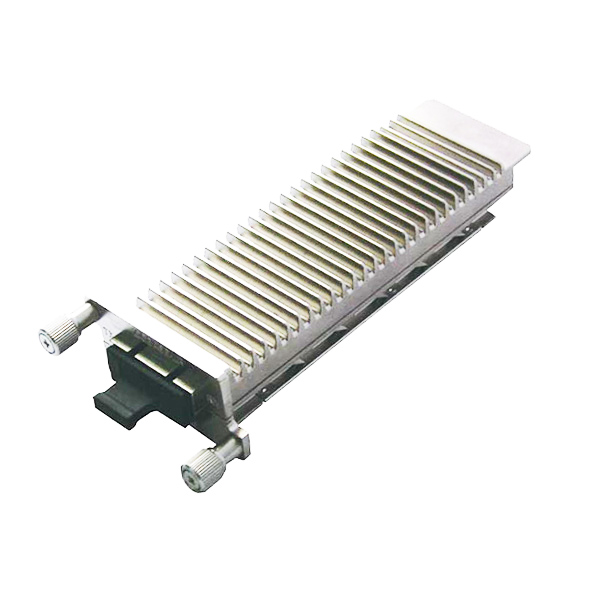

10G SR XENPAK MMF 850nm 300m LC DOM Transceiver Module

Compatible with XENPAK MSA Rev.3.0
Support of IEEE802.3ae up to 300m (OM3 MMF)
Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)
Management and control via MDIO 2-wire interface
Product description: 10G SR XENPAK MMF 850nm 300m LC DOM Transceiver Module
INQUIRY

XENPAK Module is a highly integrated、Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-SR Transmission with a Vertical Cavity Surface Emitting Laser at 850nm. The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
