10G XFP

10G SR XFP MMF 850nm 300m LC DOM Transceiver Module

Supports 9.953Gb/s to 11.1Gb/s bit rates
Maximum link length of 300m with MMF-OM3
850nm VCSEL laser and PIN photodiode
XFP MSA package with duplex LC connector

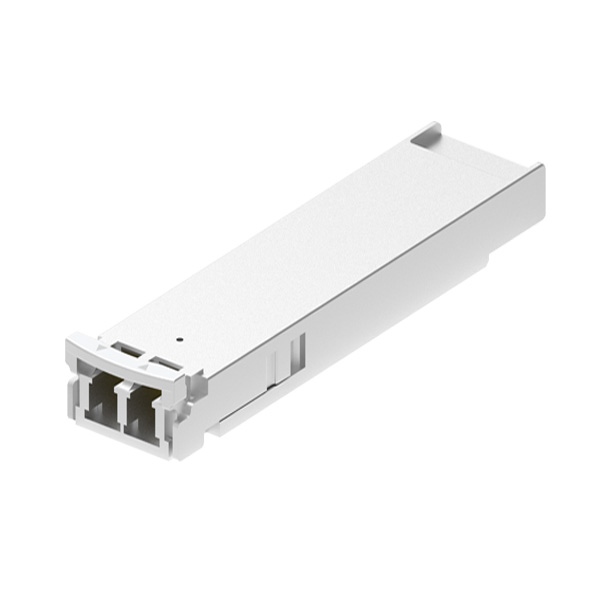

Product description: 10G SR XFP MMF 850nm 300m LC DOM Transceiver Module
INQUIRY

XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 300m with OM3 MMF.

The transceiver module comprises a transmitter with 850nm VCSEL laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
