1.25G SFP

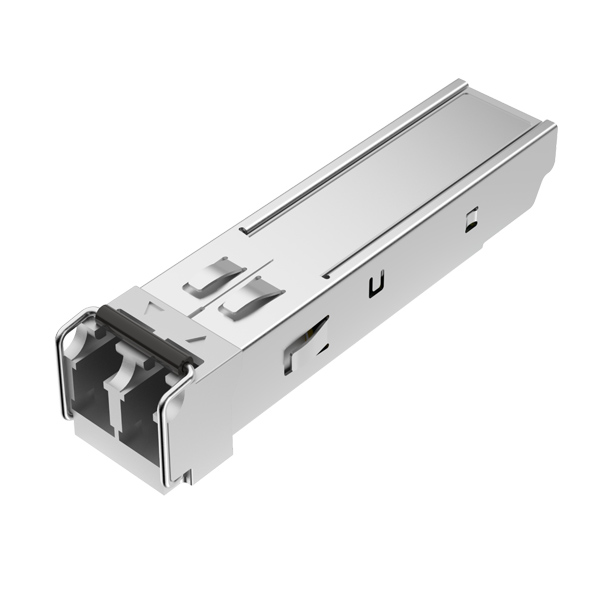

1.25G SX SFP MMF 850nm 550m LC DOM Transceiver Module

Supports up to 1.25Gbps bit rates
850nm VCSEL laser and PIN photo detector, Up to 550m for MMF transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Single +3.3V power supply
Product description: 1.25G SX SFP MMF 850nm 550m LC DOM Transceiver Module
INQUIRY

SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 550m transmission distance with MMF. The transceiver consists of three sections: a VSCEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
