40G QSFP+

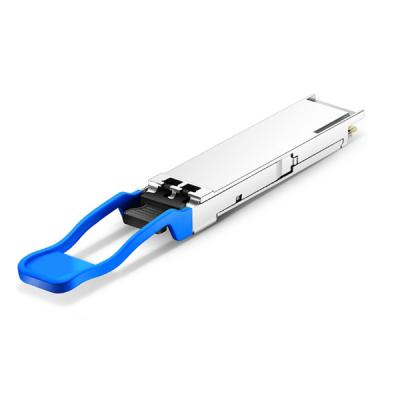

40G SR QSFP+ MMF 850nm 300m MPO DOM Transceiver Module
- 4 channels full-duplex transceiver modules,10.3125Gb/s data rate per channel
- 4 channels 850nm VCSEL array, 4 channels PIN photo detector array
- Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
- Real Time Digital Diagnostic Monitoring
- Product description: 40G SR QSFP+ MMF 850nm 300m MPO DOM Transceiver Module
QSFP+ eSR4 transceivers are high performance, cost effective modules supporting data rate of 40Gbps and 300m transmission distance with MMF.
The transceiver consists of three sections: 4 channels 850nm VCSEL array, 4 channels PIN photo detector array and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with 40GBASE-SR4 of IEEE802.3ba standard and SFF-8436 specification.
