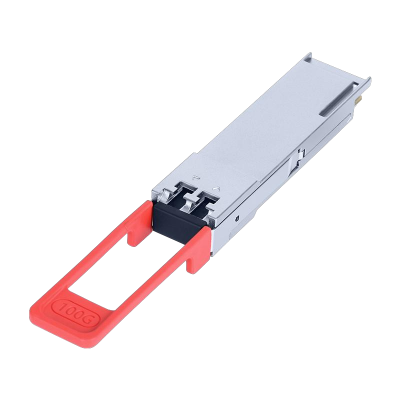

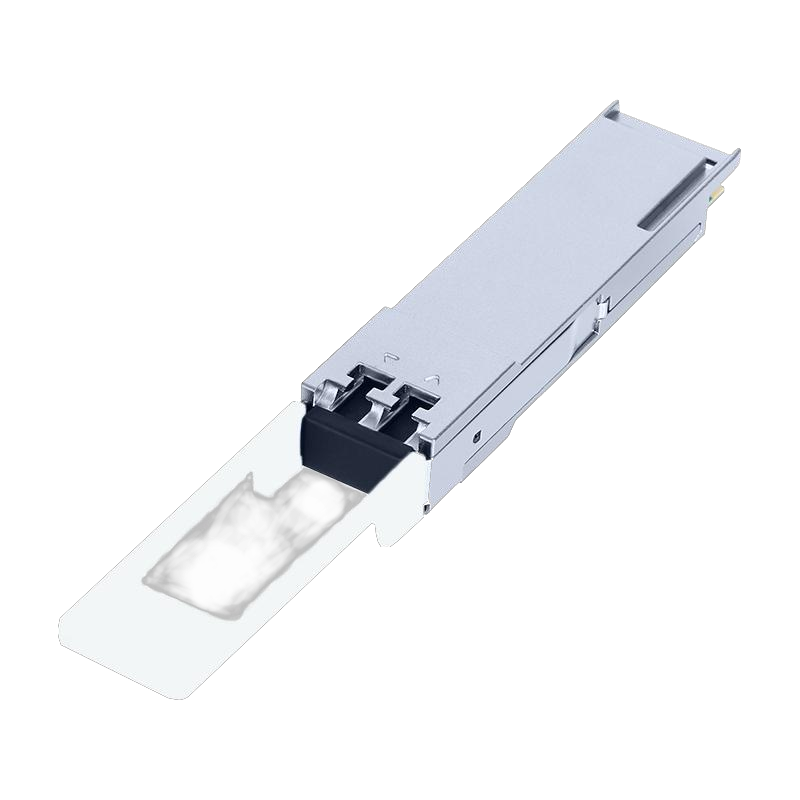

LWDM4 100km Optical Transceiver Module

Support line rates from 103.125 Gb/s

Lane bit rate 25.78 Gb/s 100GE

Up to 100km transmission with KR4-FEC

LAN WDM EML laser and PIN receiver with SOA

High speed I/O electrical interface (CAUI-4)

I2C interface with integrated Digital Diagnostic monitoring

QSFP28 MSA package with duplex LC connector

100G QSFP28 100KM Optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed, and passed on to four laser drivers, which control four electric-absorption modulated lasers (Lan-WDM) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector. On the receive side, four lanes of optical data streams are optically DE multiplexed by an integrated optical DE multiplexer. After the optical signal is amplified by SOA, DEMUX separates four channels which are recovered by PIN photodetector and cross-impedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.
