2.5G SFP

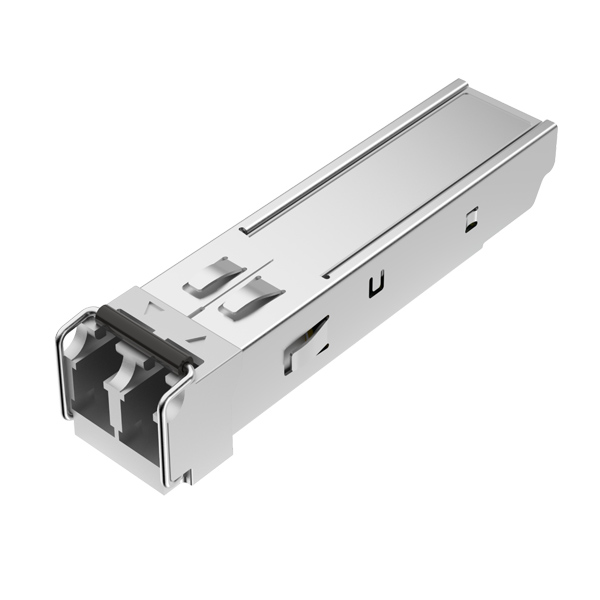

2.5G SX SFP MMF 850nm 300m LC DOM Transceiver Module
- Support for 2.5Gbps data rate
- 850nm VCSEL laser and PIN photo detector, up to 300m for MMF transmission
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Single +3.3V power supply
- Product description: 2.5G SX SFP MMF 850nm 300m LC DOM Transceiver Module
SFP-MM8548-S3DC transceiver is high performance, cost effective modules supporting data rate of 2.5Gbps and 300m transmission distance with MMF.
The transceiver consists of three sections: a VSCEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.
All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters.
