1.25G SFP

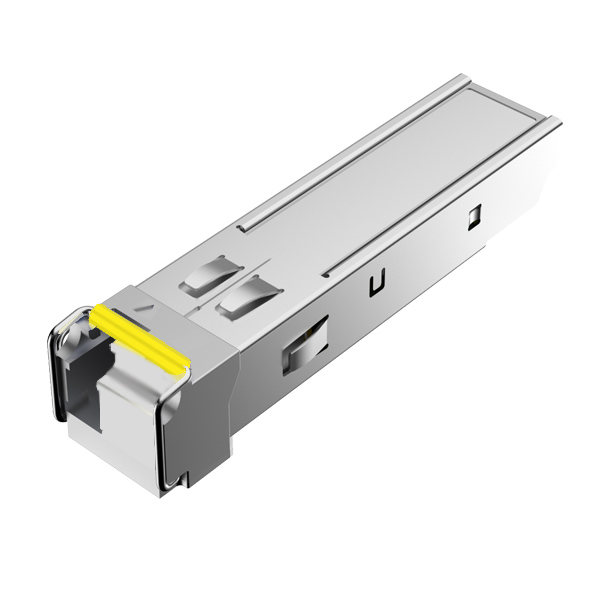

1.25G BIDI 40km SFP 1550nm Tx/1310nm Rx Single LC DOM

Support for 1.25Gbps data rate
1550nm DFB laser and PIN photo detector, up to 40m for SMF transmission
Compliant with SFP MSA and SFF-8472 with single LC receptacle
Single +3.3V power supply
Product description: 1.25G BIDI 40km SFP 1550nm Tx/1310nm Rx Single LC DOM Transceiver Module
INQUIRY

SFP transceiver is high performance, cost effective modules supporting data rate of 1.25Gbps and 40km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.

All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters.
