10G XFP

10G CWDM XFP SMF 1470nm~1610nm 40km LC DOM

Supports 9.953Gb/s to 11.1Gb/s bit rates
Maximum link length of 40km with SMF
CWDM Uncooled EML laser and PIN photodiode
XFP MSA package with duplex LC connector

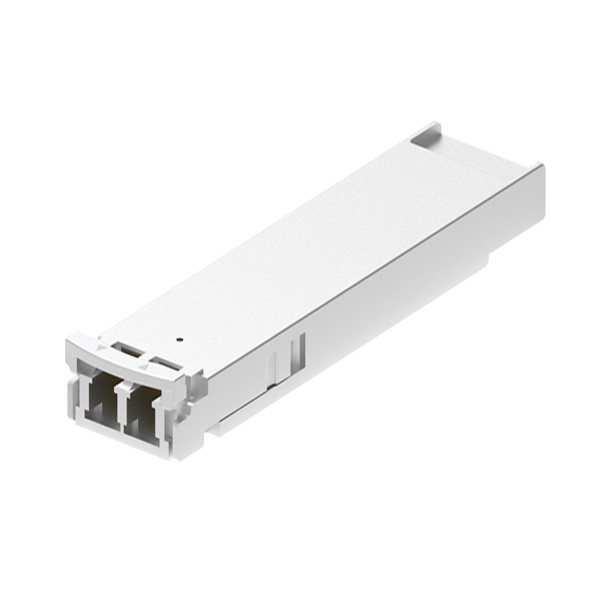

Product description: 10G CWDM XFP SMF 1470nm~1610nm 40km LC DOM Transceiver Module
INQUIRY

XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.953~11.1Gbps,

and transmission distance up to 40km on SMF.

The transceiver module comprises a transmitter with 1470~1610nm CWDM Cooled EML laser and a receiver with a PIN photodiode.

Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port

densities for 10 GbE systems.
