10G XFP

10G XFP CWDM SMF 1470~1610nm 80km LC DOM

Supports 9.953Gb/s to 11.1Gb/s bit rates
Maximum link length of 80km with SMF
CWDM Uncooled EML laser and PIN photodiode
XFP MSA package with duplex LC connector

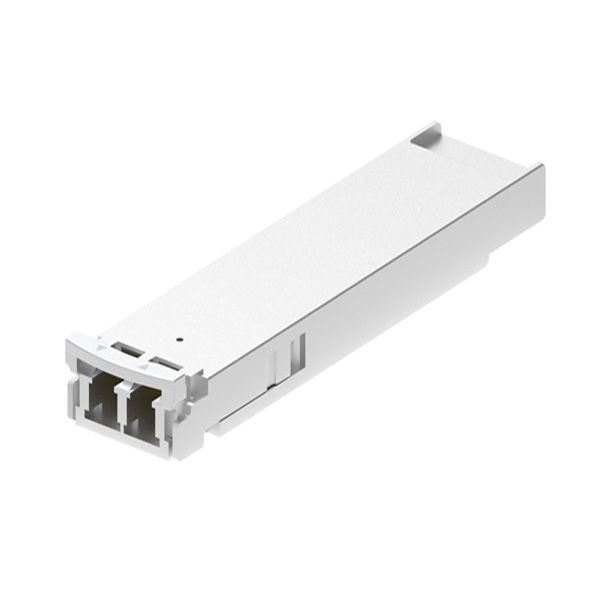

Product description: 10G XFP CWDM SMF 1470~1610nm 80km LC DOM Transceiver Module
INQUIRY

XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 80km on SMF.

The transceiver module comprises a transmitter with 1470~1610nm CWDM Cooled EML laser and a receiver with a APD photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
