25G SFP28

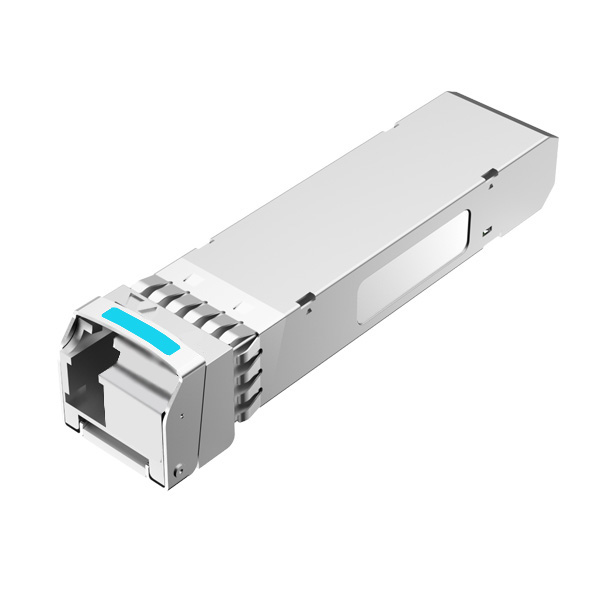

25G BIDI 10km SFP28 SMF 1270nm Tx/1330nm Rx Single LC DOM

Supports up to 25.78Gbps bit rates
1270nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
Real Time Digital Diagnostic Monitoring
Product description: 25G BIDI 10km SFP28 SMF 1270nm Tx/1330nm Rx Single LC DOM Transceiver Module
INQUIRY

SFP28 transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
