25G SFP28

25G DWDM SFP28 SMF CH18 To CH61 10km LC DOM

Supports up to 25.78Gbps bit rates
100GHz ITU, C Band DWDM Cooled EML laser and APD photodiode, Up to 10km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Real Time Digital Diagnostic Monitoring

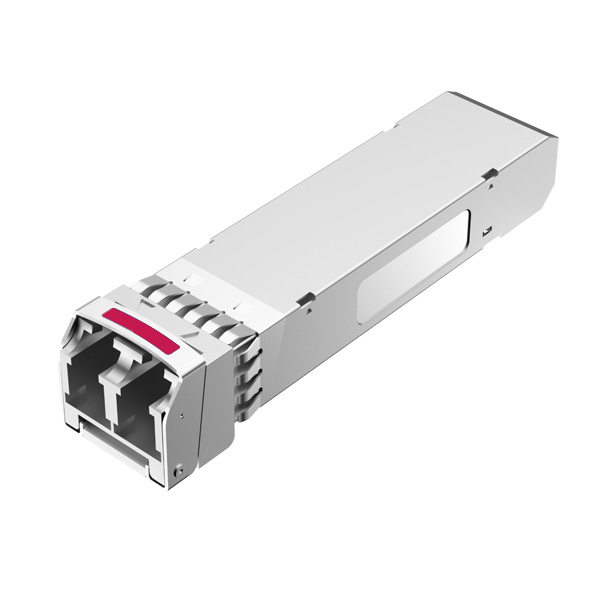

Product description: 25G DWDM SFP28 SMF CH18 To CH61 10km LC DOM Transceiver Module
INQUIRY

SFP28 transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
